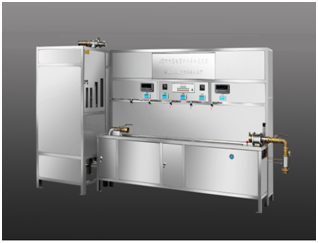

Water Meter Test Bench

1) Widely used in water meter factory or lab

2) Compliance with relative IEC standard

Structure & Features

1) Comprises of:

platform (totally stainless steel), multistage water pump (11kW, low noise), flow meters, clamps,

water tank (2.2 m3=2200L), flow regulator (various frequency control box, 11kW), measuring

system (volume method), 1m3 buffer tank, valve, high tension soft pipe, filter, anti-vibrator,

flow meter base, switches and etc.

2) Equipped with three different volume container namely 10L, 50-100L and 500L

3) Water meter withstand pressure test: 2MPa

4) Manual, Semi-automatic, or Fully automatic (optional)

5) PC software provided (optional)

6) PLC control (optional)

Function & Technical Index

With below instantaneous flow meters:

LZB-80, flow range: 7-31.25m3/h

LZB-50, flow range: 0.2-6.3m3/h

LZB-25, flow range: 0.02-0.5m3/h

LZB-15, flow range: 0.004-0.08m3/h

Glass rotor flow counter

With 5 pcs stainless steel ball valve, 8 pcs brass ball valve, and 3 pcs pressure indication meter

Numbers of water meter to be tested

2PC clamps, 2PCS clamp switch, 3PCS drain switch of volume container and 1PC flow meter base.

Working pressure: 0-35-0.5MPa

Power supply: three phase 230V±10% AC, 50HZ

Size & Weight
