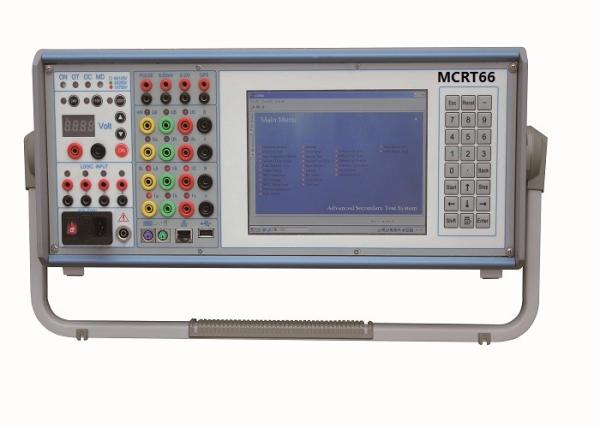

    6x150V Protection Relay Test Equipment Inbuilt Computer

    Ask Lasest Price
    Model Number : MCRT66
    Payment Terms : T/T
    Delivery Time : 20-25 Days
    Brand Name : HNMC
    Price : Negotiable
    Supply Ability : 30 sets per month
    • Product Details
    • Company Profile

    6x150V Protection Relay Test Equipment Inbuilt Computer

    Protection Relay Test Kit MCRT66


    Features


    1) Switch amplifier ensure stable and reliable output

    2) Adopting DSP technology

    3) Good accuracy output

    4) Self-test protection feature

    5) Modularization design & seperate between different parts and amplifier part

    6) With Graphic testing moudles and templates for test of different relays

    7) Electric meter test (optional)

    8) Transducer Test (optional)

    9) GPRS sync end-to-end testing (optional)

    10) Large LCD and in-built computer

    11) Transient Playback

    12) Vector diagram display

    13) Automatically test results assume

    14) Automatic creation of testing report

    15) Incorrect wiring alarm and, overload and overheat protection

    16) Interface: Ethernet port for PC connection

    17) Operation by in-built computer or by PC


    Technical Index

    AC voltage sourceMAX output voltage6×150V , 3×300V , 1×900V
    MAX output power6×75VA or 3×150VA
    resolution5mV
    Accuracy≤0.2%
    Harmonic distortion≤0.2%
    OtherOutput amplitude/frequency/phase of each phase can be adjustable independently, and with short circuit protection and over current protection
    AC current sourceMAXMUM output current6×35A , 3×70A , 1×180A
    MAXMUM output power6×300VA, 3×600VA , 1×1800VA
    resolution1mA
    Accuracy≤0.2%
    Harmonic distortion≤0.2%
    OtherOutput amplitude/frequency/phase of each phase can be adjustable independently, and with open circuit protection and over load protection
    DC VoltageMAXIMUM output voltage6×150V , 3×300V , 1×900V
    MAXIMUM output power6×75W ,3×150W
    Accuracy≤0.2%
    Othershort circuit,over-current protection
    DC currentMAXIMUM output current6×35A , 3×70A , 1×180A
    MAXIMUM output power6×300W , 3×600W , 1×1800W
    Accuracy≤0.2%
    OtherOpen circuit, overload protection
    AUX DC voltageOutput

    0~250V continuously adjustable; Fast switch between 24,110V,220V;

    Output Power:120W

    otherShort circuit,over-load protection
    PhaseRange-360°~ +360°
    accuracy0.01°
    frequencyrangeDC 10~1000Hz
    resolution0.001Hz
    drifting5ppm

    Binary input


    Quantities8 pairs
    Response time50μs
    timing range1ms~999,999.999s
    Input wayidle contact or Potential automatic identification,withstand voltage 250V
    OtherAuti-shake time adjustable

    Binary output


    Quantities4 pairs
    Output wayIdle contact, withstand voltage 250V ,capacity 250VA
    DC measurement (transducer calibration)VoltageOne group input, ±10V, accuracy <0.05%
    Currentone group, input ±20mA,accuracy <0.05%
    impulseMax receivable frequency 30KHz
    Energy Meter CalibrationType of meter under testElectromechanical & Electronic
    Pulse RangeMaximum frequency 2MHZ
    Test FunctionError test
    Configuration1 No optical sensor
    Key boardIn-built24 keys
    externalRS232
    Display screensize8.4 ``
    resolution800×600
    colorTFT
    Touching screen LCD8.4``
    MousePS/2 port
    USB portOne , USB2.0
    Web portone
    size471mm×192mm×363mm
    weight18.7 kgs
    Power SupplySingle phase AC 90-260V, 50/60HZ, 3KW/15A
