Partial Discharge Detector MCPD002

Technical Index

1. TEV measurement

Item	Specification
Sensor	capacitance type
Range	0-60bBmV
Frequency range	3-100MHz
Resolution	1dB
Accuracy	±1dB
Maximum impulse/cycles qty	1400
Minimum impulse rate	10Hz

2. Ultrasonic Measurement

Item	Specification
Range	-7dBuV～68dBuV
Resolution	1dB
Accuracy	±1dB
Sensor sensitivity	-65dB (0dB=1V/ubar RMS SPL)
Sensor center frequency	40kHz
Frequency range	20～100kHz
Sensor diameter	16mm
Heterodyne frequency	38.4kHz

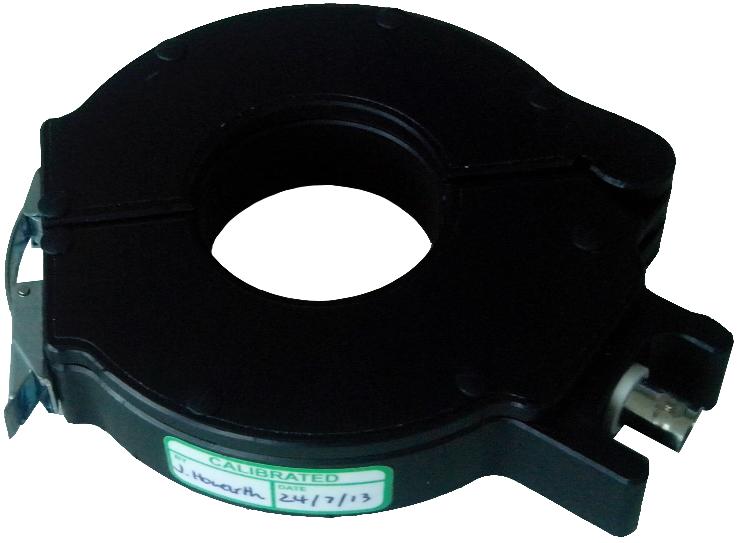

3. HFCT measurement

Item	Specification
Sensor type	HFCT
Range	0pC～25000pC
Minimum impulse rate	10Hz
Frequency response	100kHz～20MHz
Inner diameter	45mm(customization available)
Outer diamete	107 mm(customization available)
Output impedance	50Ω
Output interface	BNC connector

4. Temperature measurement

Item	Specification
Sensor type	Infrared sensor
Range	－20℃～150℃
Accuracy	±1% or 1℃
Response wave length	8～14um
Distance coefficient	15:1
Sending rate	0.95
IP degree	65
Humidity	0～90% RD
Size:	Φ20X90

5. Size & Weight: 240mm×125mm×60mm / 1.2kg

6. Rated input supply for charger: 90-264V AC/ 47-63HZ, charging voltage 12V DC
