Handheld Single Phase Relay Test Kit Open Circuit Protection

Ask Lasest Price
Brand Name :	HNMC
Model Number :	MCRT43N
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Delivery Time :	4-8weeks
Price :	Negotiable
Supply Ability :	30 sets per month

Add to Cart

Product Details
Company Profile

Handheld Single Phase Relay Test Kit Open Circuit Protection

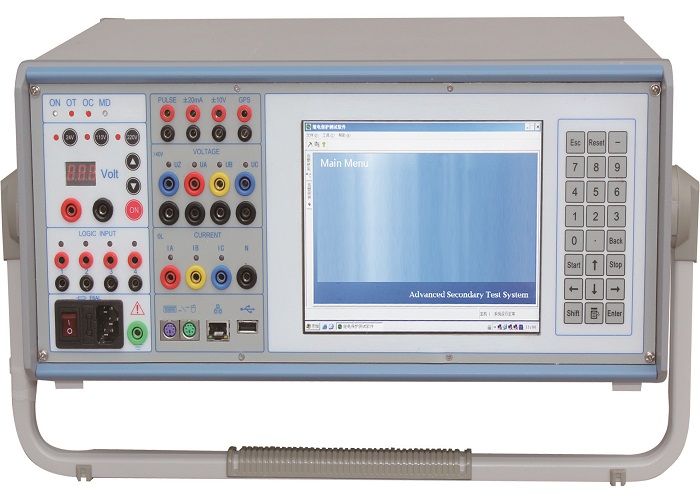

Protection Relay Test Kit MCRT43N

Features

High power & reliable amplifier
Adopting DSP technology
Stable and Reliable Output
Good accuracy
Self-protection function
Modularization Design & Mutual independent between different parts
Graphical testing modules and templates for testing of various relays
Electric meter testing (optional)
Transducer Testing (optional)
GPRS sync end-to-end testing (optional)
Transient Playback
Automatically create test report
Wrong wiring alarm and, overload and overheat protection
Operated by in-built computer or by PC

AC volts source	MAX output voltage	4×150V
	MAX output power	4×75VA
	resolution	5mV
	Accuracy	≤0.2%
	Harmonic distortion	≤0.2%
	Other	Output amplitude/frequency/phase of each phase can be adjustable independently, and with short circuit protection and over current protection
AC current source	MAX output current	3×35A or 1×105A
	MAX output power	3×300VA or 1×900VA
	resolution	1mA
	Accuracy	≤0.2%
	Harmonic distortion	≤0.2%
	Other	Output amplitude/frequency/phase of each phase can be adjustable independently, and with open circuit protection and over load protection
DC Volts	MAX output voltage	4×150V
	MAX output power	4×75W
	Accuracy	≤0.2%
	Other	Short-circui,over-current protection
DC current	MAX output current	3×35A or 1×105A
	MAX output power	3×300W or 1×900W
	Accuracy	≤0.2%
	Other	Open circuit,Over-load protection
AUX DC voltage	Output	0～250V continuously adjustable; Fast switch between 24,110V,220V; Output Power:120W
AUX DC voltage	other	Short circuit,over-load protection
Phase	range	-360°～ +360°
Phase	accuracy	0.01°
frequency	range	DC 10～1000Hz
	resolution	0.001Hz
	drifting	5ppm
Binary input	Quantities	8 pairs
	Response time	50μs
	timing range	1ms～999,999.999s
	Input way	Idle contact or Potential automatic identification,withstand voltage 250V
	Other	Auti-shake time adjustable
Binary output	Quantities	4 pairs
Binary output	Output way	Idle contact, withstand voltage 250V ,capacity 250VA
DC measurement (transducer calibration)	Voltage	one group, input±10V, accuracy <0.05%
	Current	one group, input ±20mA,accuracy <0.05%
	impulse	Max receivable frequency 30KHz
Energy Meter Calibration	Type of meter under test	Electromechanical & Electronic
	Pulse Range	Maximum frequency 2MHZ
	Test Function	Error test
	Configuration	1 No optical sensor
Key board	In-built	24 keys
Key board	external	RS232
Display screen	size	8.4 ``
	resolution	800×600
	color	TFT
Touching screen LCD	8.4``
Mouse	PS/2 port
USB port	One
Web port	one
size	471mm×192mm×363mm
weight	16.3kgs
Power Supply	Single phase AC 90-260V, 50/60HZ, 3KW/15A
