60A Intelligent Battery Charger Machine Output Reverse Connection Protection

    Buy cheap 60A Intelligent Battery Charger Machine Output Reverse Connection Protection from wholesalers

    Buy cheap 60A Intelligent Battery Charger Machine Output Reverse Connection Protection from wholesalers
    • Buy cheap 60A Intelligent Battery Charger Machine Output Reverse Connection Protection from wholesalers

    60A Intelligent Battery Charger Machine Output Reverse Connection Protection

    Ask Lasest Price
    Brand Name : HNMC
    Model Number : MHCD150-60
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 100 pcs per month
    Delivery Time : 20-25 Days
    • Product Details
    • Company Profile

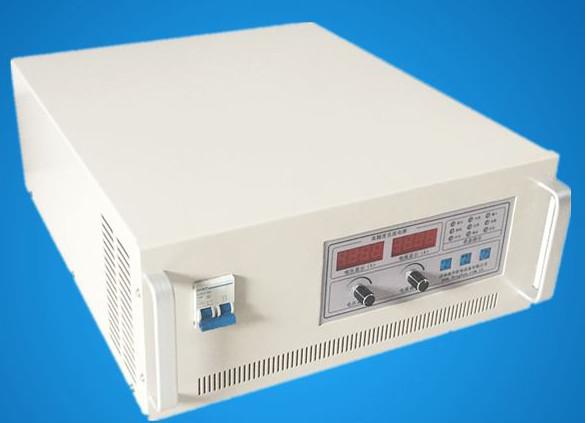

    60A Intelligent Battery Charger Machine Output Reverse Connection Protection

    Intelligent battery charger MCCD150-60

    Product introduction

    The charger adopts high frequency switching power supply technology and is controlled by microcomputer.

    This machine key control and RS485 remote computer communication control. The charging speed is fast

    and the charging efficiency is high. It can realize equalizing / floating charge, constant current / constant

    voltage automatic switching, short circuit protection, overload protection, fault self diagnosis and other

    functions. Ensure that the battery is fully charged to extend the service life of the battery. It can set, control

    and display voltage, current and other parameters.


    Main technical index and working principle


    ItemSpecification
    Input voltageAC380± 10%, 50 ~ 60Hz
    Output voltageDC0 V ~ 150V
    Output current0 ~ 60A
    Accuracy of voltage and current stabilization0.5%
    Efficiency≥ 90%
    Ripple voltageVPP ≤ 1% (@ 100% load)
    Safety withstand voltage input end to cabinet and outputdc2500v, no breakdown in one minute
    Safety withstand voltage output end to case

    DC500V, one minute

    non breakdown protection gradeIP54
    Protection function:over current protection, over and under voltage protection, over temperature protection, short circuit protection, output reverse connection protection, fault shutdown and emergency shutdown
    LED displaycharging voltage and current
